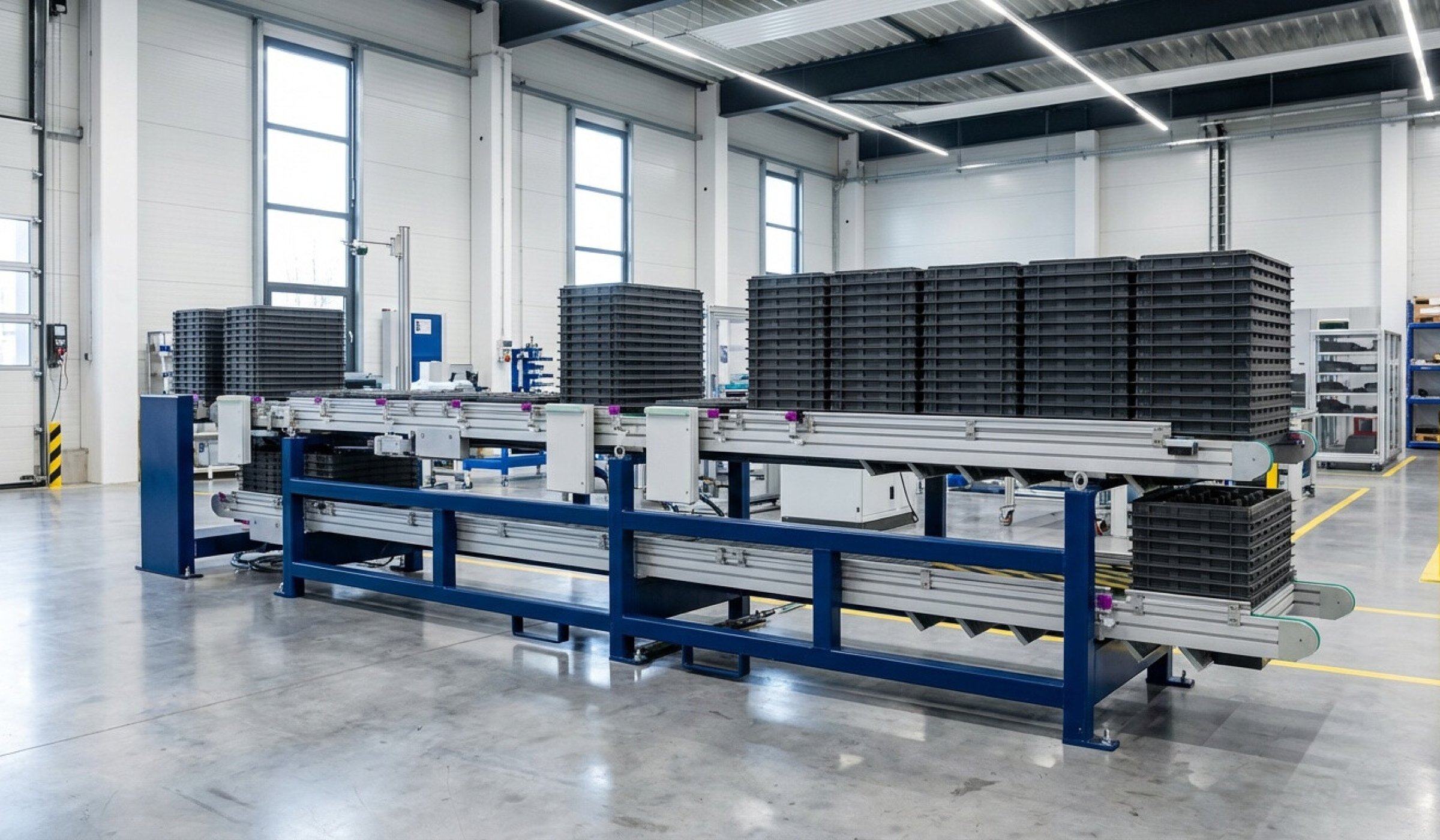

Conveyor Technology
Custom conveyor technology – beyond standard. From compact individual systems to integration into highly automated production cells.
- Flexibly configurable
- Dimensions
- Wide variety
- Belts
- Perfectly equipped
- Accessories
Conveyor technology that goes beyond standards
For over 30 years, AfiPro has developed modular conveyor solutions – scalable from a single belt to networked production cells. We combine mechanics, sensors, controls and documentation into seamless material flow.
Modular belt & timing belt conveyors with lifts, tray and carton stacking stations
Multi-level belts & workpiece carrier systems including manual workstations, centering and processing stations
Accumulating chain & chain conveyors for timed or pressure-free processes
Transfer systems for pallets, mesh boxes & special containers – standalone or as part of complex automation
Why AfiPro for Your Conveyor Technology?
All systems are modularly designed, individually customizable and can be operated standalone or as part of complex automation.
Special modules per year
Years of experience
Safe processes, documented quality, fast implementation.
Accessories & modules that think ahead
HSFB and RF32 are the versatile core modules of AfiPro’s conveyor system. Numerous modules can be flexibly configured. Whether stopping, stacking, transferring, singulating, centering, reading/writing and much more!
Flexible mechanics
Configurable base units with tunnel, roller conveyor, or end-of-belt stops.
- Base units for horizontal & inclined conveying
- Belts or timing belts tailored to the application
- Adjustable belt speeds
Intelligent accessories
Sensors and actuators precisely matched to requirements.
- Singulation and centering stations
- Stacking/unstacking modules and lift units
- Sensors and cameras for inspection tasks
- 90° or 180° transfer units
Automatable & CE-compliant
Sensors, cameras and IO-Link networking provide process data at all times.
- RFID, barcodes and cameras deliver traceability – including interfaces to MES
- CE-compliant documentation
Belt & timing belt conveyors
HSFB belt conveyor
- Belt widths and lengths are flexibly configurable – special dimensions are possible at any time
- Drive without lateral overhang for uninterrupted material flow or positioned laterally for multi-level conveyors
- Continuous profile grooves for connecting accessories such as light barriers, centering and singulation stations, stacking stations, cycle switches or inspection equipment
- Belt material and belt type selected according to the application

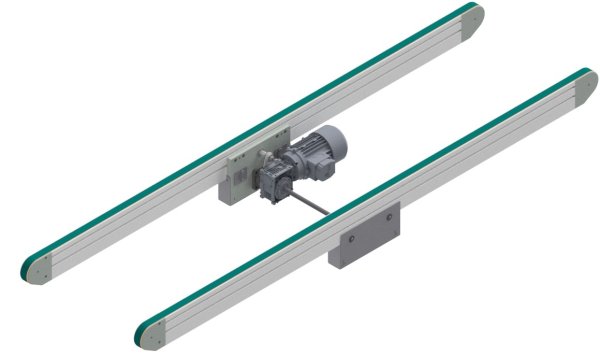

RF32 timing belt conveyor
- Dimensions flexibly configurable
- Centered drive for use even in tight installation spaces
- Continuous profile grooves for connecting accessories such as light barriers, centering and singulation stations, stacking stations, cycle switches or inspection equipment
- Belt material and structure selected according to the application
Chain conveyor
- For heavy loads, resistant to abrasion and heat
- For use in harsh environments where belts and timing belts wear quickly
- Different variants: plain, with lugs, scrapers or special workpiece carriers
- Modular design, with multiple strands if required
AfiPro – conveyor technology that thinks ahead. Which route may we plan for you?
Implementation examples
Referenzprojekt
Multi-level timing belt conveyor
- Stacks of empty trays are loaded at the bottom, conveyed through, and lifted to the upper level by a lift unit at the end
- Tray stack station destacks the trays, camera checks tray condition
- Trays are centered at the loading position and filled with a multi-gripper
- RFID tag is written with production data
- Loaded and NOK trays are stacked separately
- With a belt cycle switch, the entire accumulation section can be cleared at once
Referenzprojekt
Timing belt conveyor line for trays
- Empty trays are fed in stacks and destacked at a stacking station
- Trays run through the conveyor line and are moved between different lines with corner transfer units
- Trays are stopped at defined positions and filled
- Trays are identified via RFID tags
- Finally, filled trays are stacked and discharged
Referenzprojekt
Belt conveyor system
- Conveyor line for a multifunctional injection molding system
- Conveyor widths: 600mm, 900mm, 1000mm
- System is used for producing a wide range of small batches
- Parts are placed either by 6-axis robot or linear handling
- Conveyor line 1 is a multi-level belt where up to 6 different KLT types can be fed, filled, and discharged as needed
Get in Touch
Are you planning a new conveyor line or want to expand an existing system? Talk to us and upload drawings, parts lists or layouts directly.
