Special Machinery – from idea to solution. Individual automation for special applications – we build what is needed.
- Experience
- 30+ Years
- Individual
- Perfectly Adapted
- flexible
- Easy change for other variants
Special Machinery – individual, efficient, flexible
For over 30 years, AfiPro has been developing custom special machinery for a wide variety of applications. From automating presses, stamping machines and injection molding machines to sorting machines and dosing solutions. We immerse ourselves in your requirements and deliver solutions that automate processes, increase efficiency and offer maximum availability.
Automation of presses, stamping and injection molding machines
Handling systems
Assembly systems
Vibratory finishing / tumbling systems
Sorting systems
Packaging machines
Dosing systems
Why AfiPro for Your Special Machinery?
From compact fixtures to complete production cells – we manufacture what is needed.
years of experience
process types
Reliable in process, maintenance-friendly in operation, documented in quality.
Production Cells
Systems for fully or semi-automatic production
- Press and stamping automation with cycle times under 0,5 second
- Injection molding automation with IMD/IML systems and insertion of inserts into molds
- Product handling and subsequent operations such as inspection, cleaning, sorting, assembly and packaging
- Part sizes from a few millimeters to over one meter with product weights over 50kg
- Subsequent insertion of parts, such as blind rivets or press-fit sleeves
- Fast product changeover through intelligent design and quick-change sets
- Traceability via RFID or barcode
- Industry 4.0 – networking of systems and integration into existing infrastructure
Thanks to modular assemblies, the cell remains adaptable:
additional types, alternative tool inserts or new placement strategies can be quickly integrated.
Assembly Systems
Assembly systems as support or standalone system
- Assembly of component groups
- Part feeding as bulk material, piece goods or in trays
- Screwing, pressing, welding and plugging
- Semi-automatic for support or fully automatic with subsequent packaging
AfiPro assembly systems intelligently combine manual and automated steps. Testing technology, labeling and documentation are seamlessly integrated – up to handover to conveyor systems or packaging.
Testing Systems
Testing & Documentation
- EOL functional tests, leak/pressure tests and vision inspections
- Traceability via RFID/barcode and auditable test protocols
- Safe rejection of NOK parts
Testing systems are designed precisely for the component, cycle time and quality targets. Interfaces to MES/ERP ensure data consistency and enable real-time evaluations.
Implementation Examples
Referenzprojekt
System for assembling connector assemblies for electric car battery cells
- Assembly from nine different parts
- Parts are fed via tray and as bulk material. Position detection with various cameras
- Assembly with ultrasonic welding system, hydraulic press station and pneumatic actuators
- Part handling with four 6-axis robots
- Final inspection with 3D camera
Referenzprojekt

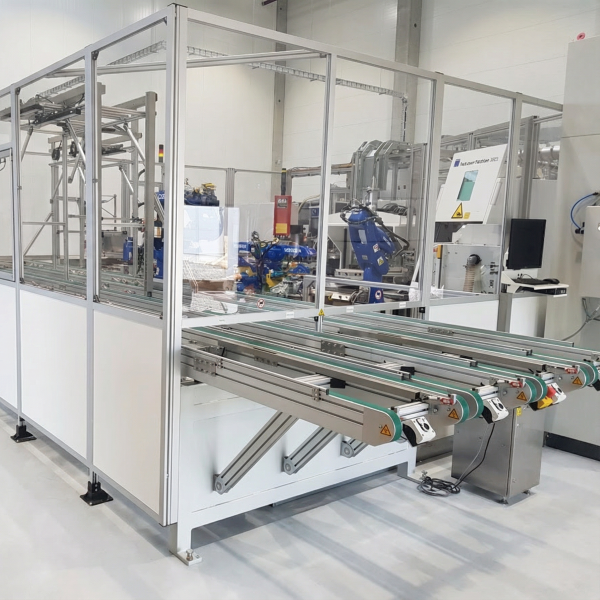

System for manufacturing contact plates for electric car batteries
- Plates fall from stamping machine onto conveyor
- Position detection on conveyor with camera
- Plates are picked from moving conveyor by six 3-axis robots and placed into carriers moving on belt conveyors
- Carriers pass through washing system, then plates are removed from carriers by two 6-axis robots and packed into trays
- 8 different plate types can be produced
- 90,000 parts per shift (8h)
- See header video on homepage for process flow
Alternativkonzept

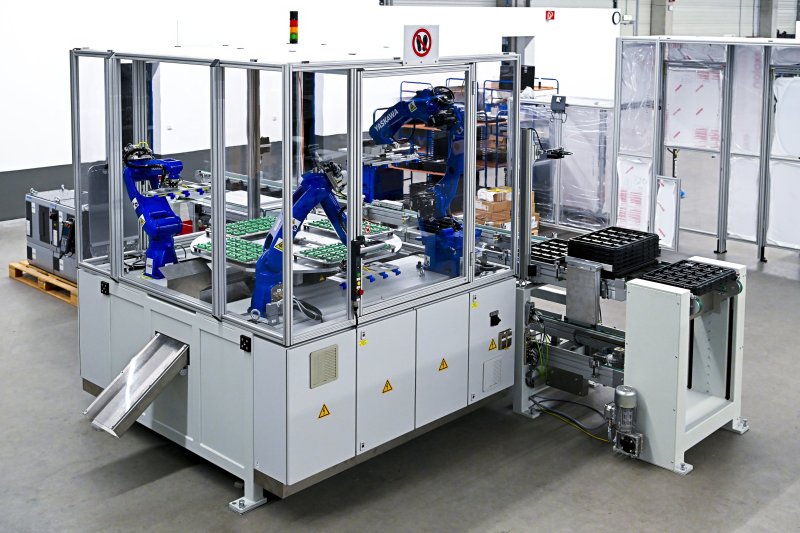

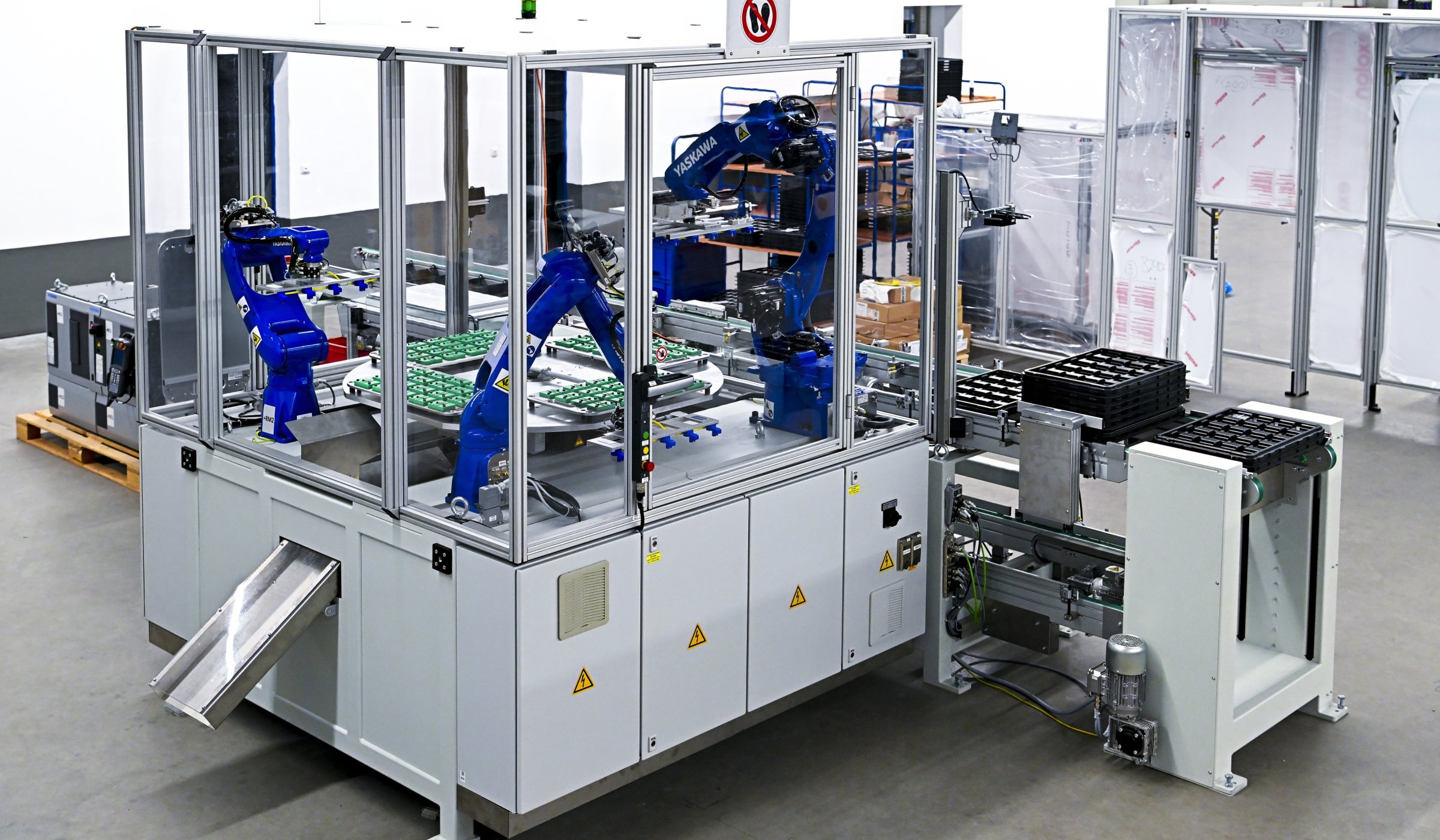

Alternative concept: More compact design with rotary table
Referenzprojekt

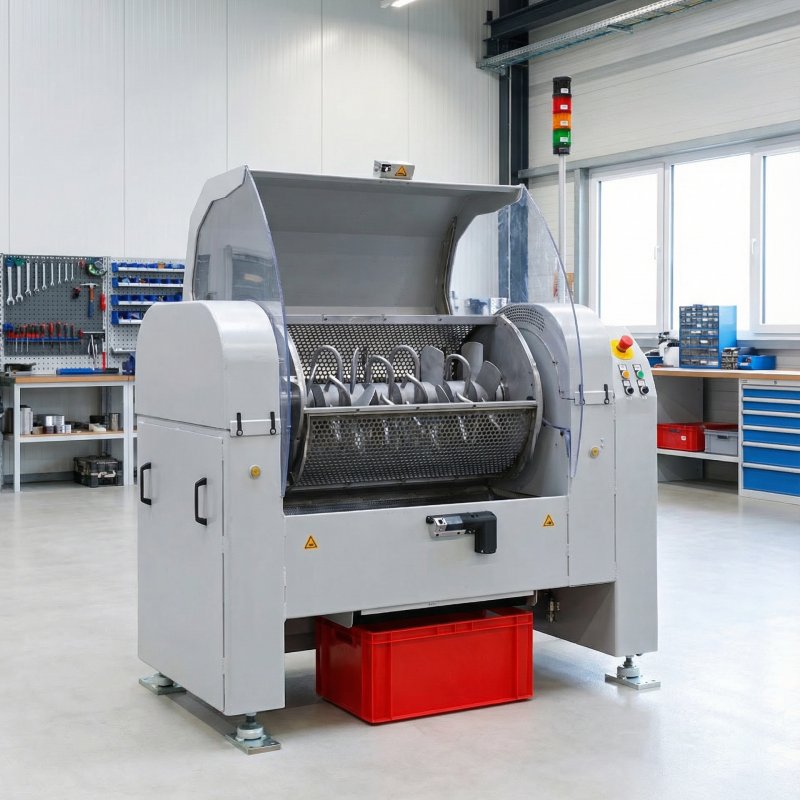

Vibratory finishing system for silicone parts
- Deburring of silicone parts through vibratory finishing
- Different product sizes can be processed through the use of interchangeable drums
- With air cooling to prevent products from overheating and being damaged
AfiPro – Your solution starts with an idea. We turn it into a machine.
Special Machinery Project Process
Clarify Requirements
Geometry, material, cycle time, safety – we define the target and process.
1
01
2
02
Concept & Engineering
Mechanics, sensors, control – optionally with tests/simulation and preliminary trials.
Manufacturing & Commissioning
Component manufacturing, assembly, FAT/SAT, CE documentation, training.
3
03
Handover & Service
Integration into your line, performance optimization, spare parts, remote support.
Get in Touch
Describe your application to us – we will develop the right special machinery. Drawings/layouts can be sent directly.
